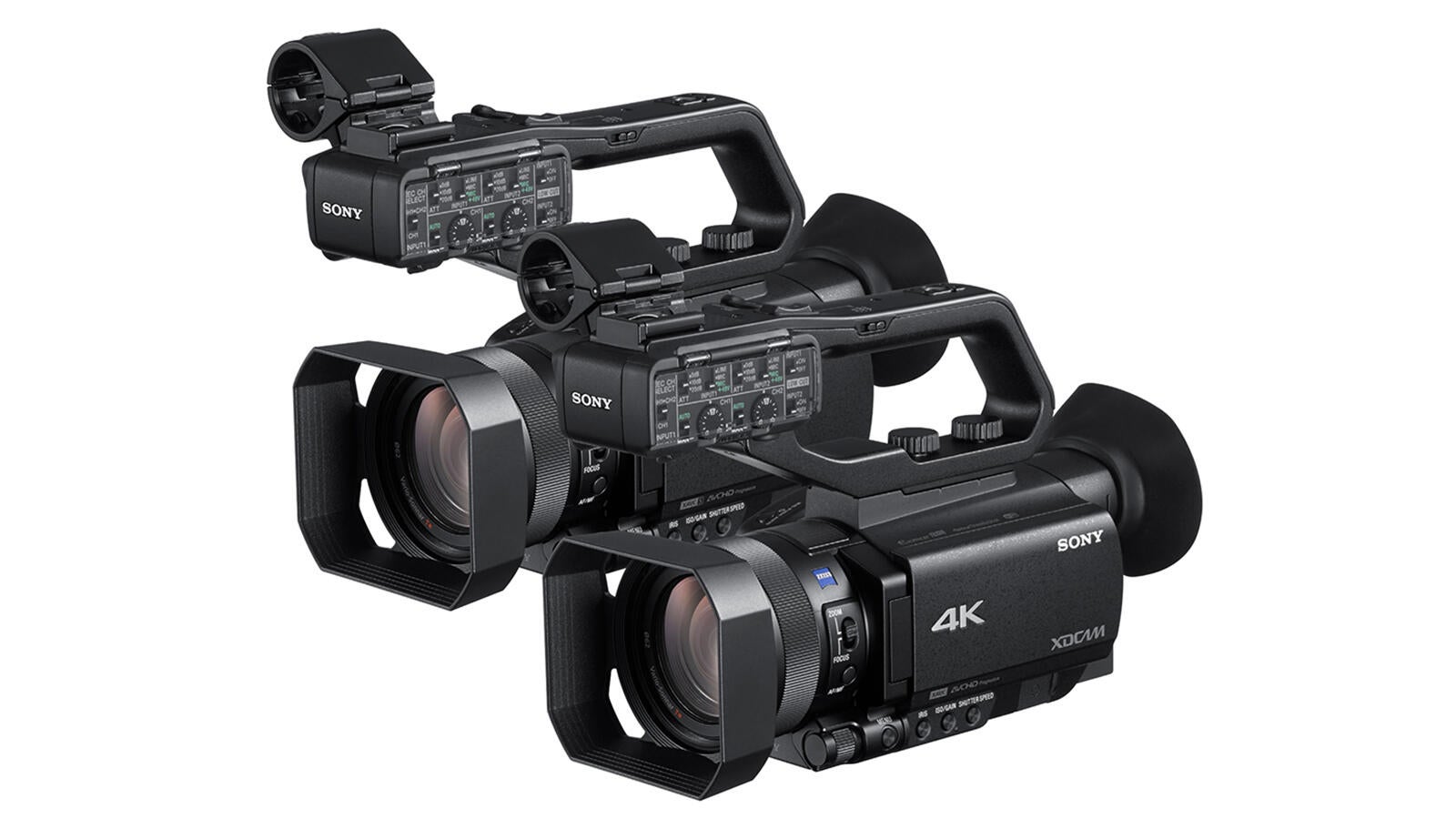

Simple Live Streaming with the Z90 & NX80 Pro Camcorders

The PXW-Z90 offers broadcast-quality 4K with advanced features such as high-speed auto focus, Instant HDR workflow, up to 960fps super-slow motion and streaming via Wi-Fi.

With the PXW-Z90, it’s easy to share high-quality video with your online audience in real time. Stream live footage directly to major online platforms with easy setup. It allows you to set up your own streaming channel with your smartphone or tablet, connect via Wi-Fi, and you’re ready to go.

The PXW-Z90 delivers stunning 4K (QFHD) High Dynamic Range (HDR) content with Hybrid Log-Gamma (HLG) file-based workflows. S-Log3 is also supported, enabling you to create beautiful imagery with a wide color gamut and color range.

The Z90 supports XAVC QFHD 100 Mbps recordings at 30p / 25p / 24p, XAVC HD Long GOP 422 50 Mbps, MPEGHD422 50 Mbps*, MPEGHD420 35 Mbps and AVCHD.

To deliver imaging performance previously impossible for a compact camcorder, a large 14.2-megapixel (effective) 1.0-type stacked CMOS image sensor delivers beautiful background bokeh defocus effects and superior sensitivity for capturing high-quality images with less noise, even under dark or bright conditions. This sensor integrates up to 273 phase-detection AF points that densely cover approx. 84% of the image area, for precise tracking of subjects throughout the shooting frame. The sensor gives you low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with minimum illumination 1.7 lux in Low Lux mode.

Networked for high mobility

The PXW-Z90 comes with 5 GHz* and 2.4 GHz Wi-Fi as standard – simply turn on and log onto your preferred network to enable a host of advanced wireless production features:

*5 GHz support dependent on country/regional regulation. Only PXW-Z90V supports 5 GHz.

• QoS Streaming to XDCAM air allows images to be streamed live from the camcorder for viewing at a remote location
• FTP Transfer allows content files recorded with MPEG HD 422/420 proxy feature (CBKZ-SLMP required) and other content files shot in XAVC (QFHD/FHD) and AVCHD formats to be sent over the Internet for remote storage on an FTP server
• XDCAM air can upload proxy footage to the cloud from multiple camera operators in the field, so editing can start immediately. Uploaded content can be accessed securely from any location. News teams can even start logging clips while shooting’s still going on, saving even more valuable time when a story’s breaking.
• Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ allows the PXW-Z90 to be remotely controlled from a smartphone or tablet computer (iOS 9.0 – 10.3 or Android 4.4 through 7.1) via a Wi-Fi connection. One-touch authentication is also possible with smartphones that offer NFC connectivity
• Wired LAN connection allows the PXW-Z90 to be connected to the Internet over a wired connection via the separately available VMC-UAM2 USB adapter cable and network adaptor kit (CBK-NA1), allowing files to be streamed or transferred by FTP

*The Content Browser Mobile™ application can be downloaded from the Google Play Store or App Store. Wi-Fi operation cannot be guaranteed with all smartphones and tablet computers.

The HXR-NX80 offers broadcast-quality 4K with advanced features such as high-speed auto focus, Instant HDR workflow, up to 960fps super-slow motion and streaming via Wi-Fi.

The NX80 delivers stunning 4K (QFHD) High Dynamic Range (HDR) content with a choice of Hybrid Log Gamma and S-log3 workflows. Create beautiful imagery with a wide color gamut and color range.

To deliver imaging performance previously impossible for a compact camcorder, a large 14.2-megapixel (effective) 1.0-type stacked CMOS image sensor delivers beautiful background bokeh defocus effects and superior sensitivity for capturing high-quality images with less noise, even under dark or bright conditions. The sensor gives you low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with minimum illumination 1.7 lux in Low Lux mode. This sensor integrates up to 273 phase-detection AF points that densely cover approx. 84% of the image area, for precise tracking of subjects throughout the shooting frame.

The HXR-NX80 allows you to record a wide range of 4K (QFHD) and HD formats for maximum flexibility from this stunning palm-sized camcorder. The NX80 supports XAVC S 4K 100/60 Mbps recordings at 30p / 25p / 24p, XAVC S and AVCHD.

The HXR-NX80 comes with 2.4 GHz Wi-Fi as standard – simply turn on and log onto your preferred network to enable a host of advanced wireless production features:

• Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ allows the HXR-NX80 to be remotely controlled from a smartphone or tablet computer (iOS 9.0 – 10.3 or Android 4.4 through 7.1) via a Wi-Fi connection. One-touch authentication is also possible with smartphones that offer NFC connectivity.



The main differences between the two models are as follows:

• Z90 has 3G HD-SDI and HDMI connectivity
• NX80 has HDMI connectivity
• Z90 offers XAVC QFHD and XAVC-L recording
• NX80 offers XAVC HD and XAVC-S QFHD
• The NX80 does not have Qos/XDCAM air/functionality
• WiFi for Z90 is 2.4G and 5G, NX80 has 2.4G
